Quick reference for the PSOC™ Edge

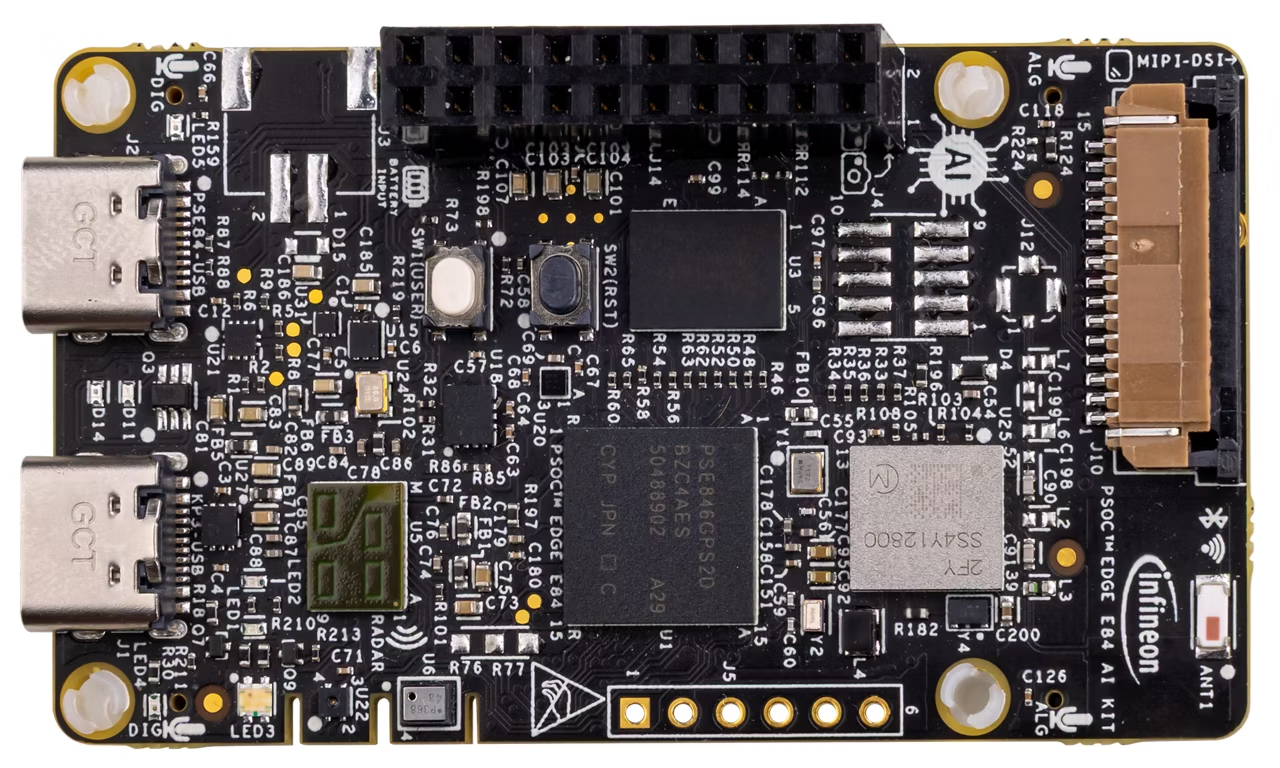

Below is a quick reference for PSOC™ Edge E84 boards. If it is your first time working with this port it may be useful to get an overview of the microcontroller:
Pins and GPIO
See machine.Pin for the complete Pin API reference. This section focuses on the specific PSOC™ Edge port variations and particularities.
The constructor
The controller pin naming follows the nomenclature P<port>_<pin>, where:
<port>is a numeric identifier for the port (e.g., 0-21 for the PSOC™ Edge E84)
<pin>is the pin number within that port.
Use the respective board pinout diagram to find the available pins and their locations.
This is the id that needs to be passed to the constructor in one of the following formats:
As a string label, single or double quoted:
'P<port>_<pin>'or"P<port>_<pin>"A pre-instantiated object
Pin.cpu.<pin>orPin.board.<pin>.
from machine import Pin
p_in = Pin('P0_0', Pin.IN)
p_out = Pin("P7_0", Pin.OUT, value=False)
p = Pin(Pin.cpu.P17_1, Pin.OPEN_DRAIN)
The pre-instantiated object can be used directly without calling the constructor.
Instead, you can use init() to configure it.
from machine import Pin
pin = Pin.cpu.P17_0
pin.init(mode=Pin.IN)
Tip
Use the REPL interface to discover the available user pins, using tab for completion:
>>> from machine import Pin
>>> Pin.cpu.P
P10_5 P10_7 P11_3 P12_3
P13_0 P13_1 P13_2 P13_3
P13_4 P13_5 P13_6 P13_7
P14_0 P14_1 P14_2 P14_3
P14_4 P14_5 P14_6 P14_7
P15_0 P15_1 P15_2 P15_3
P15_4 P15_5 P15_6 P15_7
P16_0 P16_1 P16_2 P16_3
P16_4 P16_5 P16_6 P16_7
P17_0 P17_1 P17_2 P17_3
P17_4 P17_5 P17_7 P20_3
P20_4 P20_5 P20_6 P20_7
P21_1 P21_2 P21_3 P21_4
P21_5 P21_6 P21_7 P3_0
P3_1 P6_4 P6_6 P7_0
P7_7 P8_0 P8_1 P8_5
P8_6 P9_0 P9_1 P9_2
P9_3
>>> from machine import Pin
>>> Pin.board.
AMIC1_CTB_INN AMIC1_CTB_INP AMIC1_CTB_OUT AMIC1_CTB_REF
AMIC2_CTB_INN AMIC2_CTB_INP AMIC2_CTB_OUT AMIC2_CTB_REF
I2C_SCL_1V8 I2C_SCL_3V3 I2C_SDA_1V8 I2C_SDA_3V3
I2S_TX_FYSYNC I2S_TX_MCK I2S_TX_SCK I2S_TX_SD
I3C_SCL I3C_SDA IMU0_INT IMU1_INT
MAG_INT PDM_CLK PDM_DATA PRESS_SENS_INT
RADAR_INT RADAR_RESET RADAR_SPI_CLK RADAR_SPI_CS
RADAR_SPI_MISO RADAR_SPI_MOSI SERIAL_INT0 SERIAL_INT1
SERIAL_INT2 SERIAL_INT3 USER_BUTTON USER_LED1
USER_LED2 USER_LED_B USER_LED_G USER_LED_R
In addition to the supported pull configuration values, PULL_UP_DOWN is also available in this port.
The drive parameter accepts up to 8 levels, which set the following drive strength for the pin:
DRIVE_0: 1mA/2mA drive current (normal/high speed IO)
DRIVE_1: 2mA/4mA drive current (normal/high speed IO)
DRIVE_2: 3mA/6mA drive current (normal/high speed IO)
DRIVE_3: 4mA/8mA drive current (normal/high speed IO)
DRIVE_4: 5mA/10mA drive current (normal/high speed IO)
DRIVE_5: 6mA/12mA drive current (normal/high speed IO)
DRIVE_6: 7mA/14mA drive current (normal/high speed IO)
DRIVE_7: 8mA/16mA drive current (normal/high speed IO)
For more information about drive strength, check the PSOC™ Edge Datasheet and Architecture Reference Manual.
Note
The following constructor arguments and/or configuration values are NOT supported in this port:
alt: Alternate functionality is not supported.
mode:Pin.ALT,Pin.ALT_OPEN_DRAIN, andPin.ANALOGmodes are not supported.
Methods
- Pin.irq(handler=None, trigger=Pin.IRQ_FALLING | Pin.IRQ_RISING, priority=7)
The following parameters have port-specific behavior:
priority: Priority values range from 7 (lowest) to 0 (highest). Default is 7.Note
All pins on the same port share the same interrupt line. Therefore, only one priority can be set for all pins on the same port. If multiple pins configure interrupts for the same port, the highest priority will be used. If only one pin is configured for an interrupt, its priority can be reconfigured to any value.
Note
The following irq() features are not supported in this port:
trigger: ThePin.IRQ_LOW_LEVELandPin.IRQ_HIGH_LEVELtriggers are not supported.
wake: The wake parameter is currently not supported.
hard: This parameter is ignored. It can be passed but currently has no effect.
Note
None of the non-core methods from the Pin API are currently implemented for this port.
Real time clock (RTC)
See machine.RTC:
from machine import RTC
import time
irq_counter = 0
def cback(event):
global irq_counter
irq_counter += 1
rtc = RTC()
rtc.init((2023, 1, 1, 0, 0, 0, 0, 0)) # initialise rtc with specific date and time,
# eg. 2023/1/1 00:00:00
rtc.datetime((2017, 8, 23, 2, 12, 48, 0, 0)) # set a specific date and
# time, eg. 2017/8/23 1:12:48
rtc.datetime() # get date and time
rtc.irq(trigger=RTC.ALARM0, handler=cback)
rtc.alarm(1000, repeat=False) # set one-shot short alarm in ms
rtc.alarm_left() # Read the time left for the alarm to expire
time.sleep_ms(1008) # wait sufficient time
print(irq_counter) # Check irq counter
rtc.irq(trigger=RTC.ALARM0, handler=cback)
rtc.alarm(3000, repeat=True) # set periodic short alarm in ms
rtc.cancel() # cancel the alarm
rtc.irq(trigger=RTC.ALARM0, handler=cback)
rtc.alarm((2023, 1, 1, 0, 0, 1, 0, 0), repeat=False) # set one-shot longer duration alarm
rtc.memory(b"hello") # write bytes into RTC user memory
rtc.memory() # read bytes from RTC user memory
Note
Setting a random week day in ‘wday’ field is not valid. The underlying library implements the logic to always calculate the right weekday based on the year, date and month passed. However, datetime() will not raise an error for this but rather re-write the field with the last calculated actual value.
Note
RTC API behavior on this port has the following specifics:
RTC()is a singleton constructor with noidor additional constructor arguments.rtc.irq()accepts alarm trigger0(RTC.ALARM0);wakeis not implemented.rtc.alarm()acceptstimeand optionalrepeat; no positional alarmidargument is used.Input
weekdayin datetime tuples is ignored and hardware computes the weekday from date fields.The current
rtc.memory([data])maximum payload on KIT_PSE84_AI is 28 bytes.
Warning
RTC alarm timing on this port has second-level resolution. Millisecond alarm values are accepted, but are rounded up to whole seconds internally.
Hardware I2C bus
See machine.I2C and machine.I2CTarget for the complete I2C API reference.
Hardware I2C is available on the PSOC™ Edge E84 using the SCB (Serial Communication Block) peripheral. The port supports both controller (master) and target (slave) modes.
Note
External pull-up resistors (typically 4.7kΩ) are required on both SCL and SDA lines. Only one I2C instance (controller or target) can be active at a time, as both modes share the same SCB peripheral and pins.
Warning
The KIT_PSE84_AI board has only one hardware I2C peripheral with fixed pins: P17_0 (SCL) and P17_1 (SDA). These pins cannot be changed. If you specify custom pins in the constructor, they will be ignored and a warning message will be printed.
Controller mode (Master)
Use the I2C class for controller (master) operations:
from machine import I2C
# Create I2C - uses fixed pins P17_0 (SCL) and P17_1 (SDA)
i2c = I2C(freq=400000)
# With custom timeout (default is 50000us = 50ms)
i2c = I2C(freq=100000, timeout=100000) # 100ms timeout
# Pin parameters are optional but ignored on KIT_PSE84_AI
i2c = I2C(scl='P17_0', sda='P17_1', freq=100000) # You can only use P17_0/P17_1
Constructor arguments:
id: I2C bus number (currently only 0 is available). This parameter is ignored.
freq: I2C clock frequency in Hz. Supported: 100000 (100kHz) or 400000 (400kHz). Default is 400000.
timeout: Transfer timeout in microseconds. Must be > 0. Default is 50000 (50ms).
scl: SCL pin (string ‘P<port>_<pin>’ or Pin object). Ignored on KIT_PSE84_AI - always uses P17_0. Prints warning if specified.
sda: SDA pin (string ‘P<port>_<pin>’ or Pin object). Ignored on KIT_PSE84_AI - always uses P17_1. Prints warning if specified.
Target mode (Slave)
The I2CTarget implementation on PSoC Edge has the following port-specific details:
- Fixed pins (KIT_PSE84_AI):
SCL: P17_0
SDA: P17_1
Custom pin parameters are ignored with a warning message
- Memory addressing:
mem_addrsize: Only 0 is supported (no memory addressing)EEPROM-like addressing (8/16/24/32 bit) is not yet implemented
Supported IRQ triggers:
Only transaction-level events are supported (soft IRQ only):
I2CTarget.IRQ_END_READ: Triggered when master completes reading from slave
I2CTarget.IRQ_END_WRITE: Triggered when master completes writing to slave
Inter-Processor Communication (IPC)
The IPC class provides message-passing between the two cores using the
hardware IPC pipe peripheral. This is a PSOC™ Edge-specific module — it is not part of
the standard MicroPython machine API. Currently, for this port, IPC is supported to enable communication from the CM33 core to the CM55 core.
.. note:
IPC is only available on builds compiled with the ``MULTI_CORE`` flag. The module is
not present on single-core firmware images. By default it is enabled for this port.
Note
Only CM33 → CM55 communication is currently supported. The CM33 core always acts as the initiating side; the CM55 firmware must be built and deployed separately.
The constructor
from machine import IPC
ipc = IPC(src_core=IPC.CM33, target_core=IPC.CM55)
Constructor arguments:
src_core: Source core ID. Currently onlyIPC.CM33(0) is supported. Default isIPC.CM33.
target_core: Destination core ID. Currently onlyIPC.CM55(1) is supported. Default isIPC.CM55.
Up to 5 IPC object instances can be created and this is enforced by the constructor. Each instance can be configured with different source and target cores, but currently only CM33 → CM55 communication is supported regardless of the constructor arguments.
Core ID and command constants
The following class-level constants are available on every IPC object:
IPC.CM33: Core ID for the CM33 core (0).
IPC.CM55: Core ID for the CM55 core (1).
IPC.CMD_START: Pre-defined start command (0x82).
IPC.CMD_STOP: Pre-defined stop command (0x83).
Methods
- IPC.init()
Initialise the IPC pipe hardware. Must be called once after construction and before any other IPC operation:
ipc.init()
- IPC.register_client(client_id, callback, endpoint_id, endpoint_addr)
Register a client on the source endpoint so that incoming messages addressed to
client_idinvokecallback.client_id: Unique client identifier (0–7). Each registered client must have a unique ID.callback: A callable invoked ascallback(cmd, value, client_id)when a message arrives for this client. The callback parameters are:
cmd: Command byte received from the target core.value: 32-bit value received from the target core.client_id: The client ID that the message was sent to (same as theclient_idargument passed to this method).
endpoint_id: Endpoint index for source core.endpoint_addr: Endpoint address for the source core.
Returns
Trueon success,Falseotherwise.Maximum of 8 clients can be registered per endpoint. This is a PSOC™ Edge-specific limit.
Example — registering two independent services:
def svc1_cb(cmd, val, cid): print("Service1 received cmd=0x{:02X}".format(cmd)) def svc2_cb(cmd, val, cid): print("Service2 received cmd=0x{:02X}".format(cmd)) ipc.register_client(3, svc1_cb, 1, 1) # Service 1 ipc.register_client(4, svc2_cb, 1, 1) # Service 2
- IPC.enable_core(core_id=IPC.CM55)
Boot the target core and wait for it to start. Currently only
IPC.CM55is supported.core_id: The core to enable. Default isIPC.CM55.
Calling this when the CM55 is already running prints a notice and returns immediately. Allow a short delay after this call for CM55 initialisation to complete before sending messages:
ipc.enable_core(IPC.CM55) time.sleep(1) # Wait for CM55 firmware to initialise
- IPC.send(cmd, value=0, client_id)
Send a message to a client on the target core.
cmd: Command byte. UseIPC.CMD_START,IPC.CMD_STOP, or any application-defined value.value: Optional 32-bit data payload. Default is0.client_id: Client ID on the target core.
Raises
OSErrorif the send fails after the maximum number of retriesipc.send(IPC.CMD_START, 0, 5) # Send CMD_START to CM55 client 5 ipc.send(IPC.CMD_STOP, 0, 6) # Send CMD_STOP to CM55 client 6
- IPC.is_busy([core_id])
Check whether the IPC channel for the given core is currently locked.
core_id:IPC.CM33orIPC.CM55
Returns
Trueif the channel is busy,Falseotherwise:if not ipc.is_busy(): ipc.send(IPC.CMD_START, 0, 5) # Check a specific core explicitly if ipc.is_busy(IPC.CM55): print("CM33 channel is locked")
Complete example
The following example demonstrates two independent services sharing a single IPC endpoint, with each service using its own client IDs on both the CM33 and CM55 sides:
import time
from machine import IPC
ipc = IPC(src_core=IPC.CM33, target_core=IPC.CM55)
ipc.init()
# Per-service receive state
svc1 = {"received": False, "cmd": None}
svc2 = {"received": False, "cmd": None}
def svc1_cb(cmd, val, cid):
svc1["received"] = True
svc1["cmd"] = cmd
def svc2_cb(cmd, val, cid):
svc2["received"] = True
svc2["cmd"] = cmd
# Register both services on the CM33 endpoint (endpoint_id=1, endpoint_addr=1)
ipc.register_client(3, svc1_cb, 1, 1) # Service 1 -- CM33 client_id=3
ipc.register_client(4, svc2_cb, 1, 1) # Service 2 -- CM33 client_id=4
# Boot CM55 and wait for it to initialise
ipc.enable_core(IPC.CM55)
time.sleep(1)
# Send CMD_START to CM55 Service 1 (client_id=5); echo comes back to CM33 client_id=3
ipc.send(IPC.CMD_START, 0, 5)
# Send CMD_STOP to CM55 Service 2 (client_id=6); echo comes back to CM33 client_id=4
ipc.send(IPC.CMD_STOP, 0, 6)
